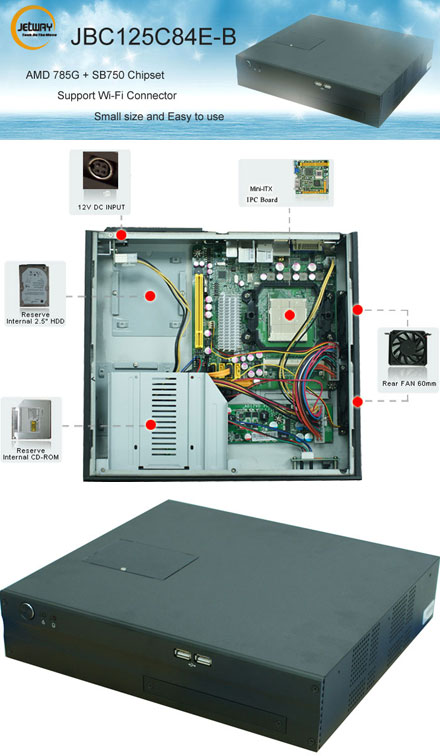

Model No
 |
JBC125C84E-B
 |
|
Motherboard Specification
 |
|
CPU
 |
Support Socket AM2+ Quad core    Opteron™ & Phenom™
 |
|
Chipset
 |
AMD 785G Chipset + SB750 Chipset
            HT3.0
 |
|
Memory
 |
2 * SODIMM Sockets for un-buffered Dual    Channel DDR2 800 SDRAM up to 4 GB
 |
|
LAN
 |
Realtek RTL8111DL PCI-E LAN chip for Gigabit Ethernet    LAN
 |
|
Audio
 |
Realtek ALC662 HD Audio CODEC with 6.0    CH
 |
|
Storage
 |
4 * Serial ATA2 3Gb/s connectors
            Supports HDDs with RAID 0, 1,,5,10 functions
 |
|
USB
 |
Embedded 10 * USB 2.0/1.1
 |
|
BIOS
 |
8MB SPI Flash ROM
 |
|
Form Factor
 |
Mini-ITX Form Factor, M/B 170 x 170mm
 |
|
Barebones Specification
 |
|
Specs    Exposed
 |
1 x Slim ODD    Drive Bay    (Optional: 1 x 2.5”    Drive Bay)
            Hidden: 2 x 2.5” HDD Drive     Bay
 |
|
Colors
 |
Black Color
 |
|
Cooling Fan
 |
Side: 6cm Fan x 2
 |
|
Front I/O Port
 |
2 x USB(V2.0),
 |
|
Rear I/O Port
 |
6 * USB 2.0/1.1 ports
            1 * RJ-45 ports & 2 * e-SATA    ports
            1 * Audio I / O ports
            1 * VGA port & 1 * DVI port
            1 * Combo PS/2
            1 * HDMI port
 |
|
Power supply
 |
120W    DC-DC Power Converter
 |
|
Optional Accessory
 |
SD/MS 4in1 Reader x1
 |
|
Standard Accessory
 |
120W AC-DC Adapter x1
            Power Cord x1
            Wall Mount x2
            Riser Card x1 (PCI to    1 * PCI)
            CD x1 and Manual x1
 |
|
Functional
 |
Home Server, Car Application, Smart Mini PC, POS, KIOSK, Home    Entertainment
 |
|
Packing
 |
Gross Weight:4.385KG
            Net Weight:3.70KG
 |
|
Certificate
 |
CE,FCC For Barebone
            CE,FCC,TUV,UL,CCC,CB For Power    Adapter |
