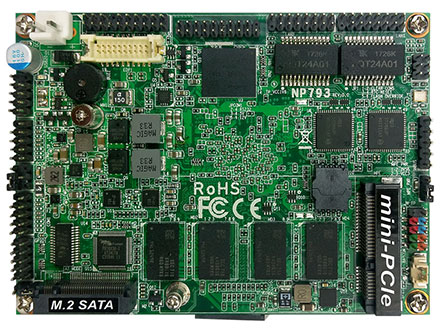

Jetway JNP793D2-3160 (Intel Braswell)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JNP793D2-3160 (Intel Braswell)

  • Intel® Braswell N3160 SoC Processor
  • Support DDR3L, on-board 2GB memory
  • 2 * Intel GbE
  • Support HDMI and eDP pin header
  • Equipped with 32GB on-board eMMC
  • Support M.2 (M key, SATA interface, 2242) storage
  • 2 * Internal COM ports
  • 2 * Internal USB3.0 & 2 * Internal USB2.0
  • 1 * full size Mini-PCIe slot
  • 12V DC-in power
[more]

Share


SSD (mSATA):

SSD (M.2 NVME):

  • Intel® Braswell N3160 SoC Processor
  • Support DDR3L, on-board 2GB memory
  • 2 * Intel GbE
  • Support HDMI and eDP pin header
  • Equipped with 32GB on-board eMMC
  • Support M.2 (M key, SATA interface, 2242) storage
  • 2 * Internal COM ports
  • 2 * Internal USB3.0 & 2 * Internal USB2.0
  • 1 * full size Mini-PCIe slot
  • 12V DC-in power
The JETWAY JNP793D2-3160 adopts the Intel® Braswell N3160 SoC processor. JNP793D2-3160 equipped with pin headers to the PCB size to 100x72mm. JNP793D2-3160 equipped with 2GB on board DDR3L memory and 32GB on board eMMC which is suitable for most of the applications. With dual Intel Gigabit Ethernet LAN ports, customers can connect intranet and surf the internet.

In addition, it offers flexible expansion with M.2 and mPCIe slot which can expand extra storage or connect other add-on modules. JNP793D2-3160 also has two USB 3.0, two USB 2.0, one RS232 and one RS232/422/485 ports. Customers can connect different peripherals to meet their needs. JNP793D2-3160 also support HDMI/eDP dual display which can be used for standard main board or panel PC. All of the JNP793D2-3160 designs provide rich features with small dimension.

 Model
Model – JNP793D2-3160
Part Number – JNP793D2-3160
 Form Factor
Dimensions – 2.5” (100 * 72mm)
 Processor System
CPU – Intel® Braswell N3160 SoC Processor
Core Number – Quad Core
Max Speed – 2.24GHz
L2 Cache – 2MB
Chipset – SoC
BIOS – AMI Flash ROM
 Expansion Slot
Mini-PCIe – 1 (full size)
mSATA – 0
PCIe – 0
M.2 – 1 (M key, SATA interface, 2242)
eMMC – 32GB on-board
 Memory
Technology – DDR3L 1600 SDRAM
Max. – 2GB on-board memory
Socket – 0
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 0
LVDS – 0
eDP – 1
HDMI 1.4 – 1
DisplayPort 1.2 – 0
MultiDisplay – Dual
 Ethernet
Ethernet – 10/100/1000/10G Mbps
Controller – 2 * Intel i211AT GbE
Connector – 0
 Audio
CODEC – Realtek ALC662VD
Channel – MIC/Line Out
 SATA
Max Data Transfer Rate – N/A
 Rear I/O
VGA – 0
HDMI – 0
DisplayPort – 0
Ethernet – 0
USB – 0
Audio – 0
Serial / Parallel – 0
PS2 – 0
DC-input – 0
 Internal Connector
USB – 2 * USB3.0 & 2 * USB 2.0
PS/2 – 0
LVDS / inverter – 0
eDP – 1
HDMI – 1
Serial – 2 (1 * RS232 & 1 * RS232/422/485)
SATA – 0
mPCIe – 1
eMMC – 32GB on board
M.2 – 1 (M key, SATA interface, 2242)
GPIO – 1 (8 bit)
Chassis intrusion – 0
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM – 0
Others – 0
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments
 Power Requirements
Input PWR – 12V DC-in Power
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, LVD
 Environment
Temperature – Operating: 0°C ~ 60°C(with 0.7m/s air flow)
– Storage: -20°C ~ 85°C
 Warranty
Warranty – 2 Years Limited Warranty
