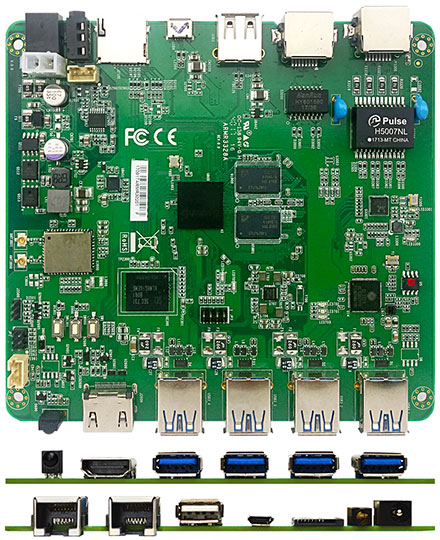

Jetway JARM3328A-2N (ARM Cortex A53, Android 7.1 / Linux 4.4)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JARM3328A-2N (ARM Cortex A53, Android 7.1 / Linux 4.4)

  • Rock chip® ARM Cortex A53 RK3328 Quad‐core 1.5GHz
  • Onboard 1333/2GB DDR3L DRAM up to 4GB
  • Onboard 8G Flash ROM up to 32GB
  • Support 1 * Micro SD Socket (Max 64G)
  • 1 * REALTEK Gigabit LAN external PHY, 4 * USB3.0, 1 * USB2.0, 1 * OTG, 1 * HDMI
  • Support 4K VP9 and 4K 10bit H265/H264 video decoding up to 60fp
  • Support 1080P H.264 / H.265format video encoding
  • Supported with HDR10 and HLG modes
  • Support Android 7.1, Linux 4.4
  • 130mm * 120mm


Share

 Model / Part Number
Model – JARM3328A-2N
Part Number – JARM3328A-2N
 Form Factor
Dimensions – 130 * 120mm
 Processor System
CPU – Rock chip® ARM Cortex A53 RK3328 1.5GHz
Core Number – Quad-core
Max Speed – 1.5G
L2 Cache – 0
Chipset – Rock chip® ARM Cortex A53 RK3328 SOC
BIOS – 0
PMU – Rock chip® RK805-1
 Expansion Slot
Mini-PCIe – 0
TF Card Socket – 1
SIM Card Holder – 0
 Memory
Technology – Onboard DDR3L 1333MHz2GB
Max. – 4GB
Flash Rom – 8GB (Max 32GB)
 Graphics
Controller – (by CPU)
VRAM – Shared Memory
LVDS – 0
HDMI – 1 (2.0)
MIPI – 0
DisplayPort – 0
MultiDisplay – Single Display
 Ethernet
Ethernet – 10/100/1000 Mbps; 10/100 Mbps
Controller – 1 * Realtek RTL8211F-CG Gigabit LAN
– 1 * 10/100 Mbps internal FE PHY
Connector – 2 * RJ 45
 Audio
CODEC – HD Audio: SGM89000
Channel – 2 Channels
 Special Features
WIFI – 802.11 a/b/g/n/ac,5.0G
WIFI Chip – RTL8822BS
Bluetooth – BT-V4.1 SDIO BLE
OS – Android 7.1, Linux 4.4
 Rear I/O
HDMI – 1 (3840 x 2160@60Hz)
Ethernet – 0
USB – 4 (4* UB3.0)
IR – 1
Audio – 1 (Line-out +MIC)
 Front I/O
Audio – 1 (Line-out +MIC)
USB – 6 (4* UB3.0 + 1* USB2.0 + 1 * OTG)
Ethernet – 2
TF Card Socket – 1
DC-input – 1
 Power Requirements
Input PWR – 5 ~ 12V DC-in (PWR Con)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – RoHS, REACH, CE, FCC (Option)
 Environment
Temperature – Operating: -10°C ~ 60°C
– Storage: -20°C ~ 65°C
 Warranty
Warranty – 2 Years Limited Warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway ARM Overview Download (PDF)
